High Precision Cleaver  C108

High Precision Cleaver C108

Application areas:
Inquiry Now

Specifications

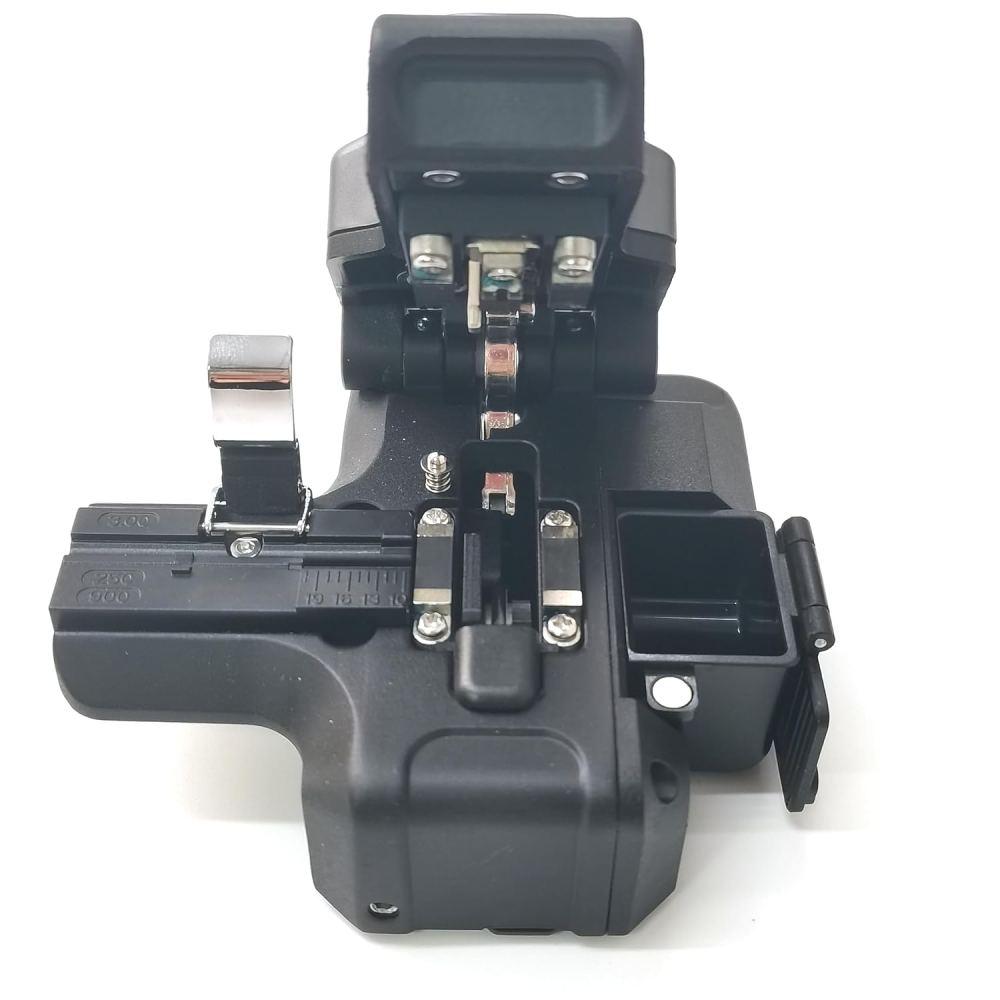

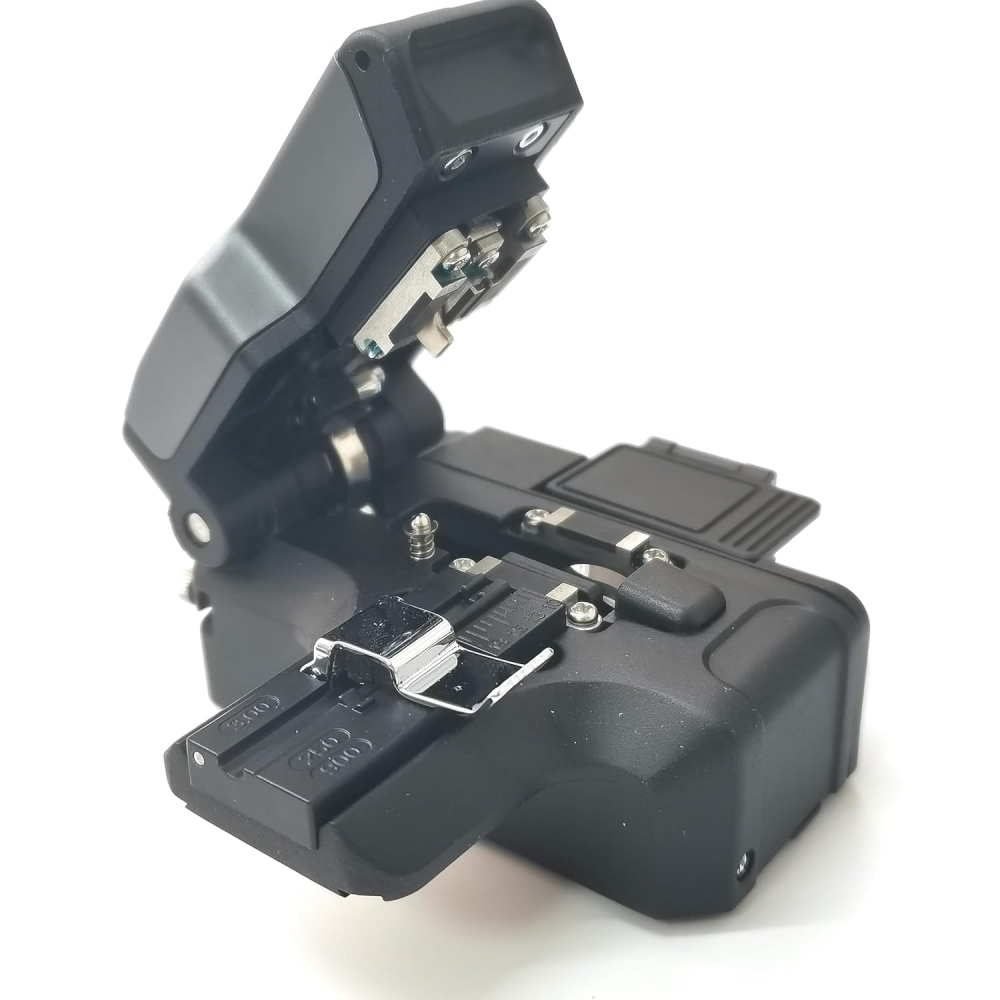

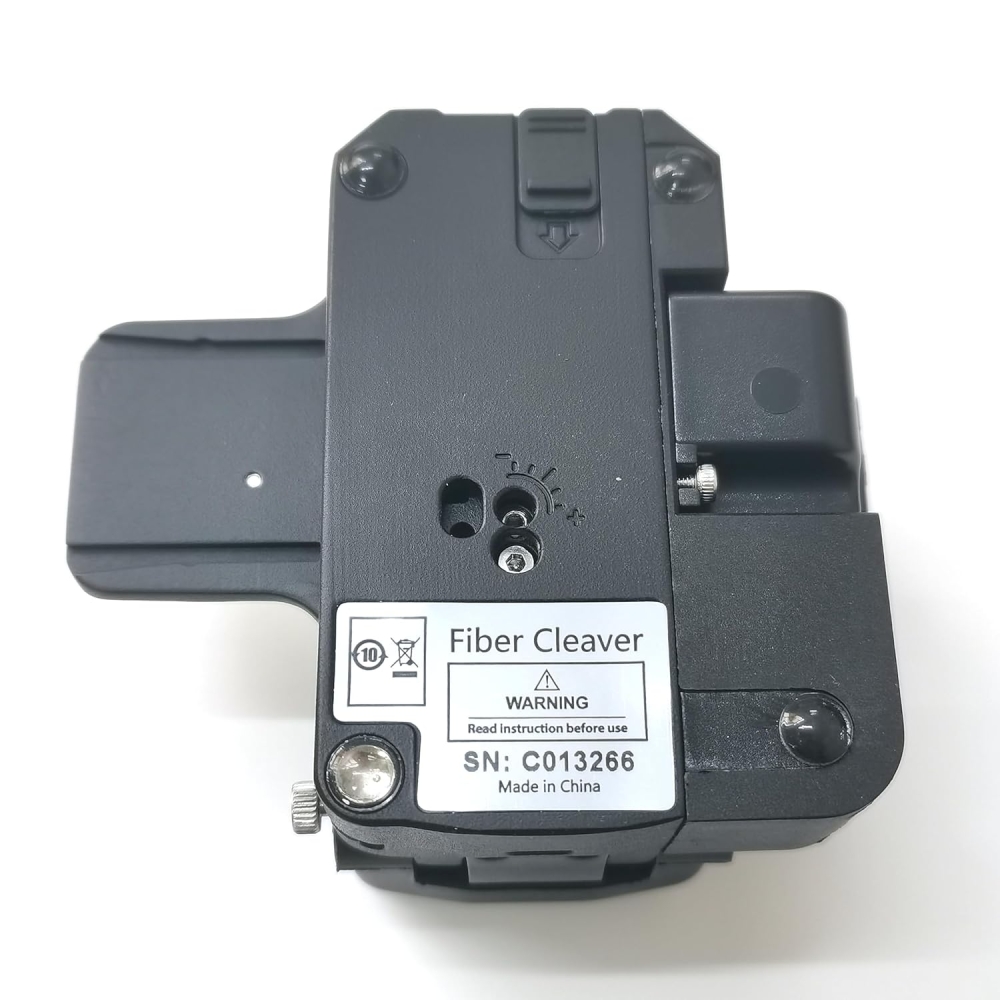

COMWAY C108 High Precision Cleaver

COMWAY C108 High Precision Cleaver

* Provides approximately 48,000 cleaves
* Compact body& light weight
* 250um Coated or 900um Buffer fiber
* Singlemode or Multimode Use
* 24 Position Rotatable and Replicable Blade
* Model: C105
* Applicable fibers: Singlemode or Multimode Use
* Fiber Diameter: 125um
* Coating Diameter: 250um - 900um
* Typical Cleave Angle: 0.5 Degrees
* Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating), 10 - 16mm (Single Fiber - 0.9mm Coating)
* Blade Life Time: 48,000 cleaves 2,000 per blade position)
* Cleaver Dimensions: 62 x 60 x 60mm
* Weight: 491g

COMWAY C108 High Precision CleaverCOMWAY C108 High Precision CleaverCOMWAY C108 High Precision Cleaver



COMWAY C108 High Precision Cleaver
